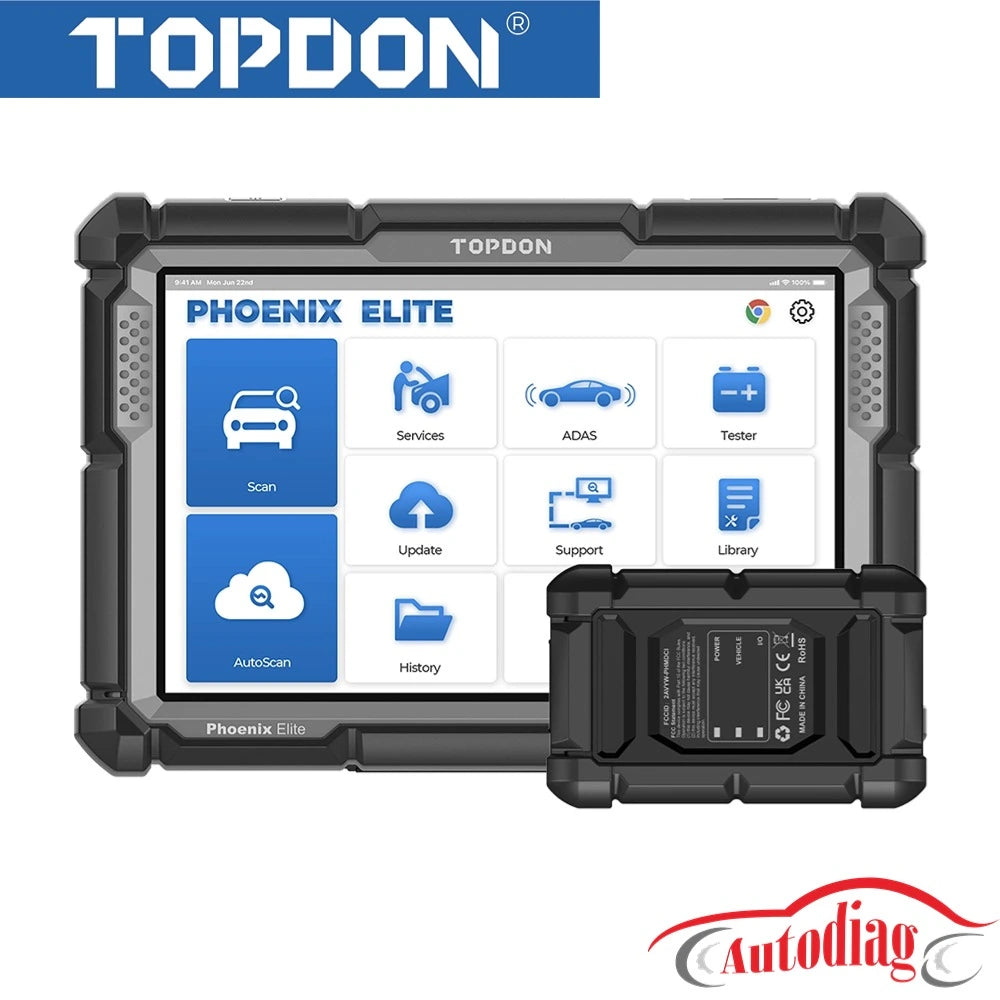

The Phoenix Elite is a professional-grade diagnostic scanner that offers OE-level quality. This tool provides fast and precise diagnostic capabilities with an LCD 10.1” screen, 4-Core 2.0 GHz Processor, and Android 10.
Its topology feature lets technicians have a clear picture of the automobile’s systems and quickly find communication issues or identify trouble codes. This tool can perform cloud-based programming, active tests, coding, initializations, memory resets, and much more.
FEATURES
-

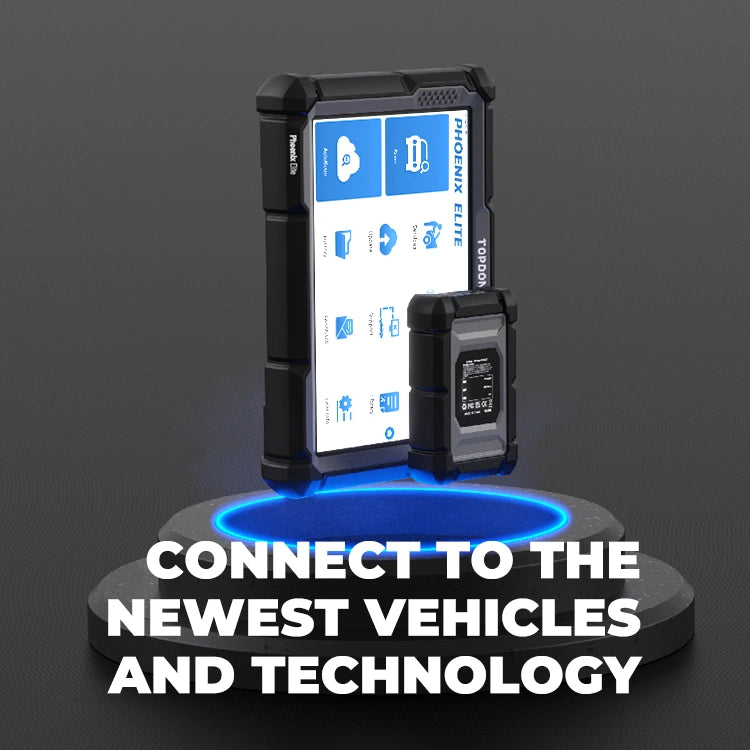

The Phoenix Elite comes with an updated VCI compatible with the CANFD protocol, making this a must-have device to work on the most modern cars.
-
Topology map granting a clear picture of related vehicle systems and status-Clearly defined CAN network layout
-
Diagnose communication issues in one glance
-
Color-coded mapping of each module communication status
-
Active tests, special functions, coding, initialization, and memory resets
-
Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish

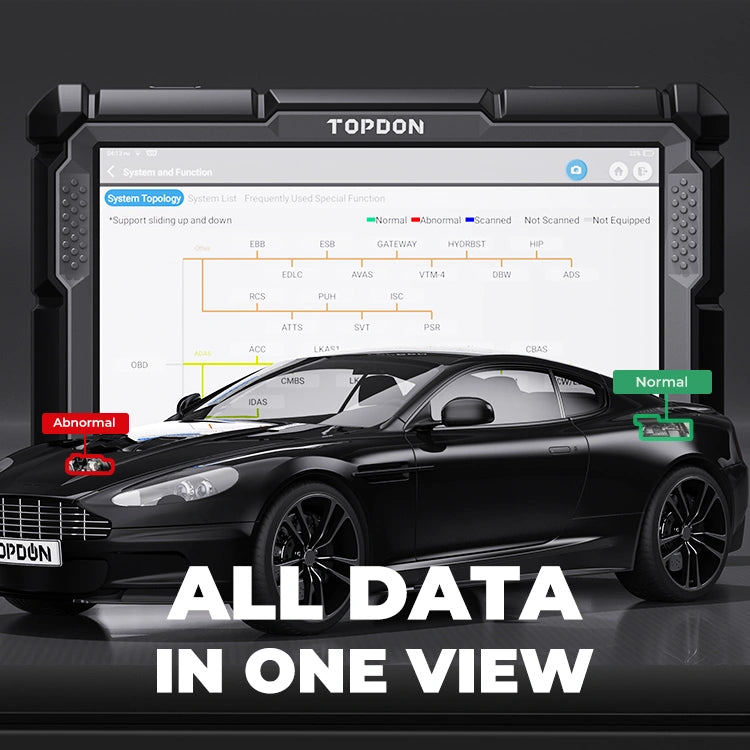

All data in one view
-
Topology map granting a clear picture of related vehicle systems and status-clearly defined CAN network layout.
-
Diagnose communication issues in one glance
-
Colour-coded mapping of each module communication status
-
Active tests, special functions, coding, initialisation, and memory resets

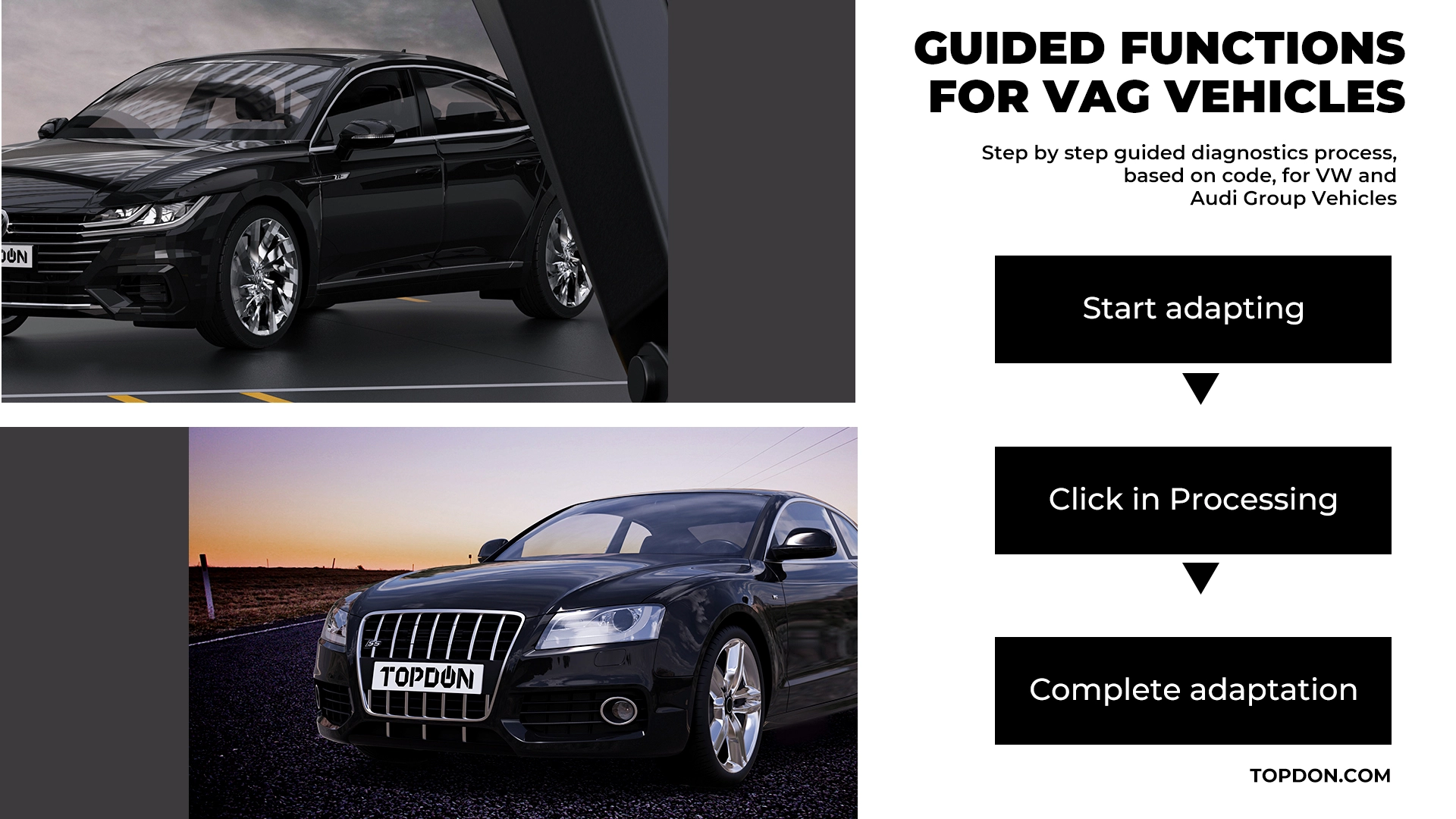

Guided procedures for VAG vehicles
-
Step by step guided diagnostic process, based on code, for VW and Audi Group Vehicles.
Expand coverage to include ADAS calibrations
-
Not just a diagnostics tool, The Phoenix Elite allows you to expand your abilities. By upgrading your licnese with ADAS calibration functions and adding the necessary targets, you can turn your high-performance scan tool into an ADAS system calibration station. You are creating a whole new revenue stream for your workshop.

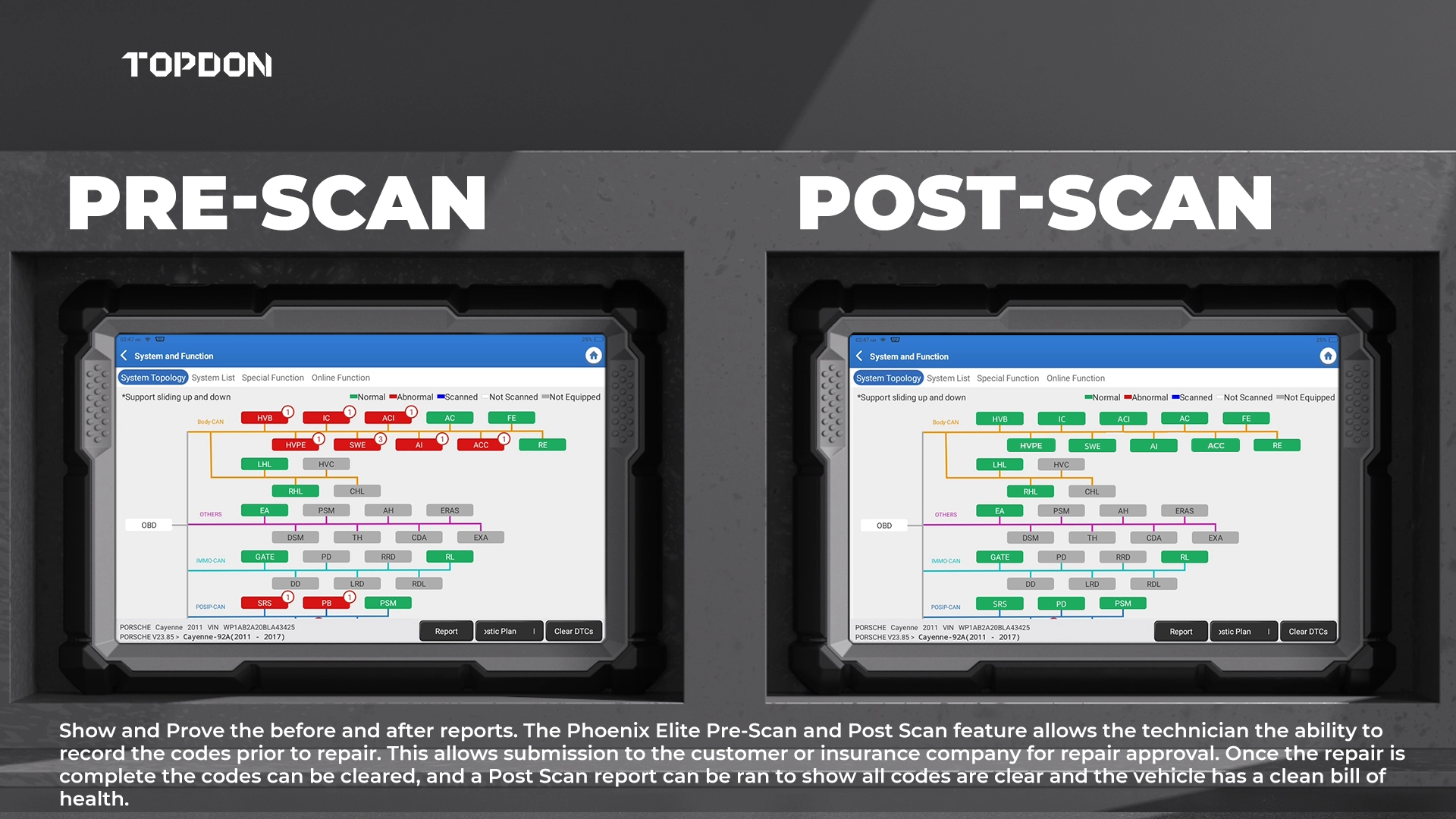

Pre-scan and post-scan reporting
-
Show and prove the before and after reports. The Phoenix Elite pre-scan and post scan feature allows the technician to record the codes before repair. This allows submission to the customer or insurance company for repair approval. Once the repair is complete, the codes can be cleared, and a post scan report can be run to show all codes are clear and the vehicle has a clean bill of health.

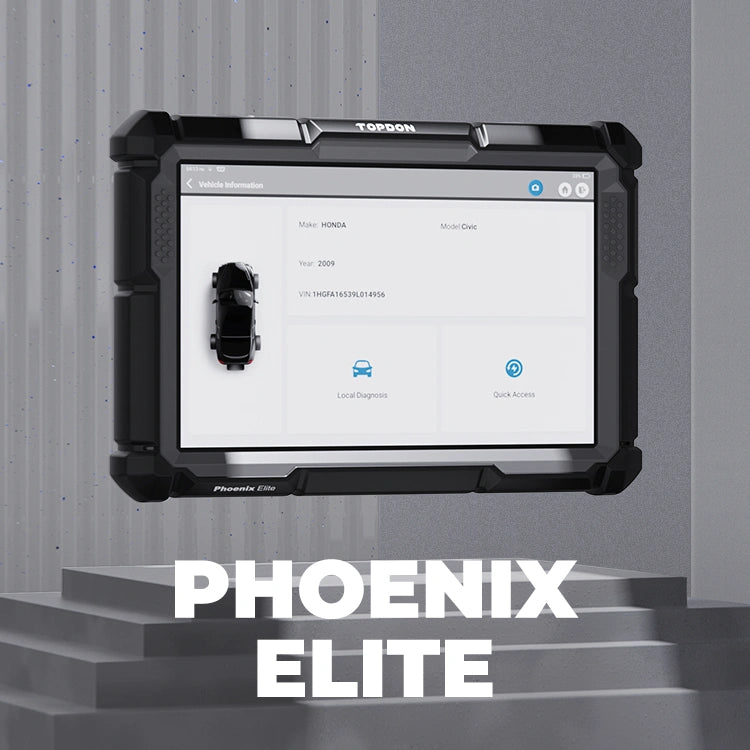

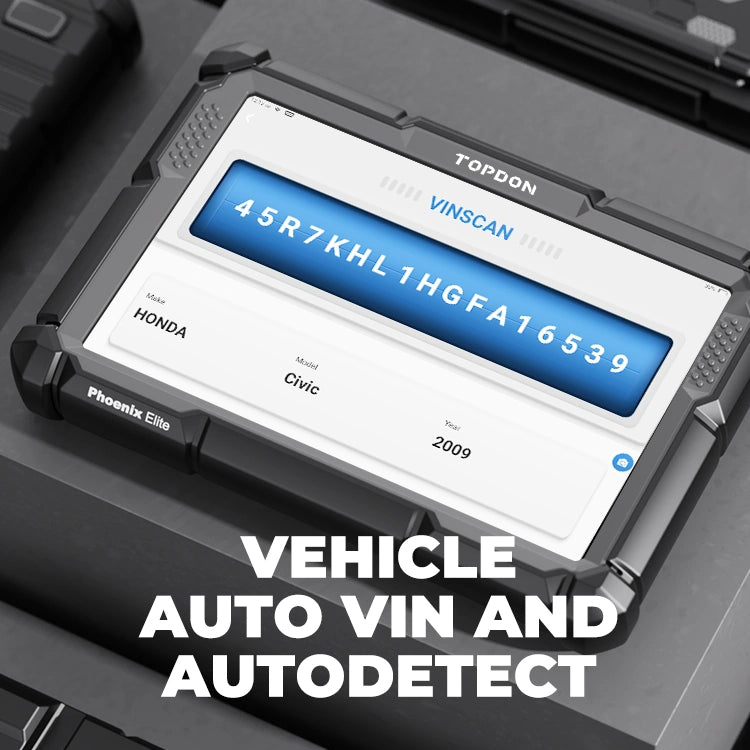

Vehicle Auto VIN and Autodetect
-
You no longer need to select the year, make and model. The Phoenix Elite can automatically capture the vehicle's VIN number and determine all relevant information to auto-populate the car. Saving the technician time and preventing mistakes.
Technical Specifications--Phoenix Elite:
- Display: LCD 10.1-Inch, 1280 * 800
- CPU 4-Core Processor, 2.0 GHz
- System: Android 10.0
- RAM: 4G, ROM 64G
- Battery: 12000 mAh / 3.8V
- Operating Voltage: 9~18V
- Dimension: 278*191*48 mm
- Package size: 468*320*143 mm(18.43*12.60*5.63")
- Net Weight: 3.45 lb (1566.5g)
- Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish

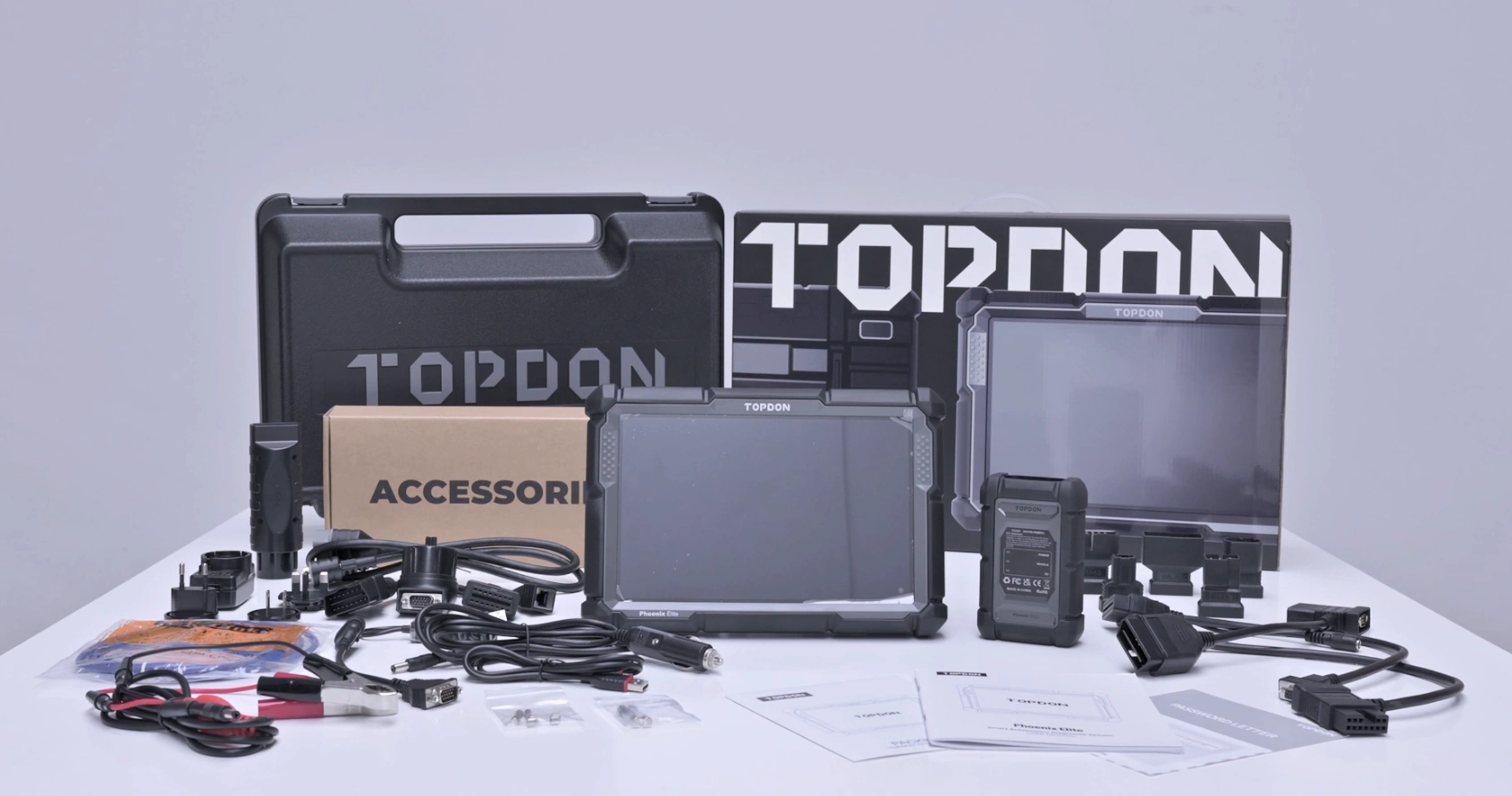

Packing List
- 1* Phoenix Elite
- 1* VCI Dongle
- 1* OBDI Adapter BOX Transfer Line
- 1* OBDII Extension Cable
- 1* Cigarette Lighter Cable
- 1* Type-C to USB Cable
- 1* Battery Clamps/Cable Set
- 1* Power Adaptor
- 1* User Manual
- 1* Password Envelope
- 10* Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
- 4* Fuse (φ5*20mm)
- 2* Fuse (φ6*30mm)
- 1* BMW F-Chassis Programming Cable
